We present the following to help TfL diseminate its information. We wish to make the information available for informed comment to cyclists and other concerned persons.

Shepherds Bush Detail
Acton Detail

Cross-sections

These come from Drawings No. 8012BG05/A2 sheets A and B and dated 07/ 01/ 03.
You are looking east along the Uxbridge rd.

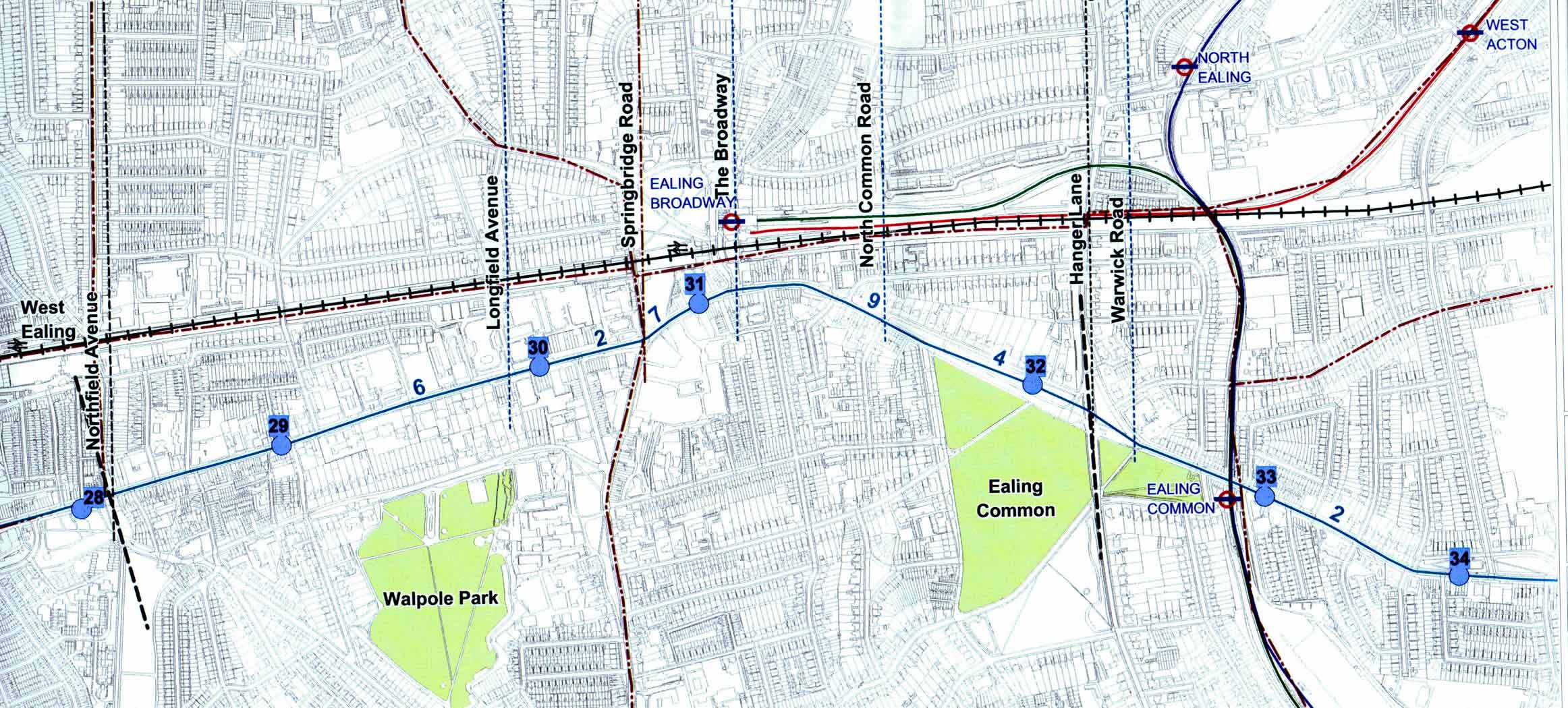

Detail of route

These graphics have been scanned from plans produced for Transport for London, London Trams. They are known as level 2 plans / issue 3.

The drawing No. is D101169 / S206 and it is dated 12/02/03. The original plans have the logos of Scott Wilson and Aegis Semaly Ltd on them.

These level 2 plans are in the public domain. There are also level 1 plans. Those are not in the public domain and it is not known what they show.

The blue numbers along the route refer to the cross-section type.

The black numbers on a blue square refer to the number of the nearby tramstop shown by a blue circle.

To reduce file size and download time, low resolution scans have been used and so they lack the clarity of the originals.

Cross-sections

These are sections along the route looking east

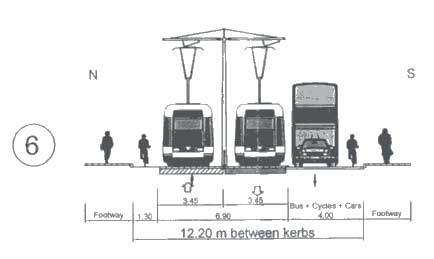

Cross-
section 6

Northfield ave to
Longfield ave

Cross-
section 2

Longfield ave to Springbridge rd

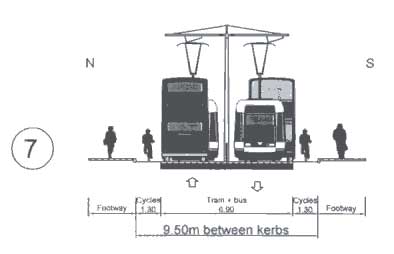

Cross-
section 7

Springbridge rd
to
The Broadway

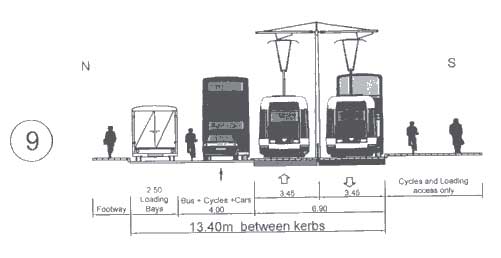

Cross-
section 9

The Broadway to
North Common rd

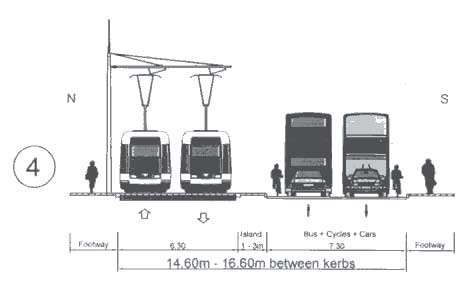

Cross-
section 4

North Common rd
to
Warwick rd

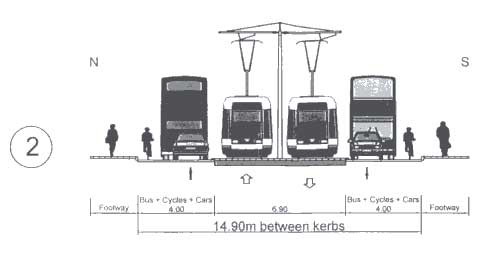

Cross-
section 2

Warwick rd
to Gunnersbury Lane

Detail of route

The image below may take a short while to load
